PUK 6 -Welding microscopes

Below you will find a list of our PUK 6 welding microscopes.

THE ALLROUNDER

SM6 welding microscope

Art. No. 200 226

Only optimal visibility with real safety for the operator’s health leads to good welding results.

Security

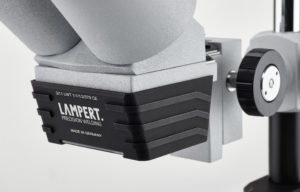

In contrast to simple mechanical protection systems, the PUK welding microscope is equipped with an LCD welding eye protection system specially developed and certified for Lampert. This eye protection system has decisive advantages for your safety.

For one thing, the field of vision is not completely darkened during welding, which results in less eye fatigue.

On the other hand, the Lampert system permanently protects against the dangerous radiation (UV and IR) generated during welding.

Even in case of a possible malfunction, there is safety for the welder’s eyes!

Ergonomics

Especially for regular or prolonged welding, good ergonomics of the welding microscope is very important.

The PUK welding microscope can be optimally adjusted to the operator and additionally ensures relaxed and low-fatigue work due to comfortable hand rests.

Each welding microscope is prepared for the attachment of an optionally available headrest, which makes even longer work comfortable.

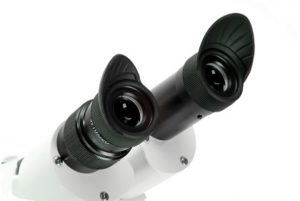

Optical quality

The optics of PUK welding microscopes excel where it really makes sense.

After 12 years of development, we are still convinced that there are two essential requirements for the optics of a welding microscope. A fixed 10x magnification and a large 20mm diameter field of view.

In other words, as few mechanical components or functions as possible that could be damaged by the vibrations generated during welding.

Here, too, quality and durability are our top priorities.

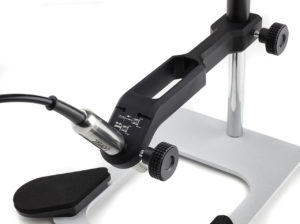

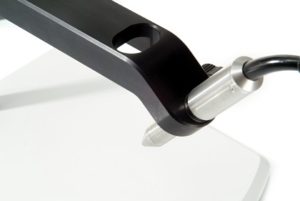

NEW designed housing of the eye protection system with integrated LED lighting. The SM 6 becomes a working microscope in no time at all by simply swinging the NEW designed handpiece holding arm out of the field of view.

Magnification 10 x
Field of view diameter 20 mm
Working distance 145 mm
Diopter adjustment +
Lighting LED 3 W / 800 mA
Ergonomic hand rests +
Height and tilt adjustment +
Weight 3,5 kg

Actively controlled LCD eye protection system +
Brightness level of the LCD DIN 3
Darkness level of the LCD DIN 11
Switching time < 50 ms
UV protection > UV11
IR protection > IR11

OUR MOST VERSATILE VARIANT

SMG5 Articulated arm welding microscope

Art. No. 200 207 G5

Articulated arm, can be rotated and swiveled in all directions, making it particularly ergonomic to work with. For easy mounting on a workbench e.g. with 3 screws (not included).

Provides even more flexibility at the workplace, e.g. when welding very large objects. Better use of space where space is limited.

Easy operation by the fixing knob. This microscope can also be used as a working or viewing microscope at any time.

Magnification 10 x
Field of view diameter 20 mm
Working distance 145 mm
Diopter adjustment +
Lighting LED 3 W / 800 mA
Reach 550 mm
Height and tilt adjustment +
Weight 5,1 kg

Actively controlled LCD eye protection system +
Brightness level of the LCD DIN 3
Dark level of the LCD DIN 11
Switching time < 50 ms
UV protection > UV11
IR protection > IR11

THE ENTRY-LEVEL MODEL
SM03 Microscope
Item no. 200 203

  • Microscope optics with 10x magnification
  • Individually adjustable
  • LED illumination in the handpiece holding arm
  • Optimal illumination of the work area

Magnification 10 x
Field of view diameter 20 mm
Working distance 145 mm
Diopter adjustment +
Lighting LED 3 W / 800 mA
Weight 3,7 kg

Actively controlled LCD eye protection system +
Brightness level of the LCD DIN 3
Darkness level of the LCD DIN 11
Switching time < 50 ms
UV protection > UV11
IR protection > IR11

Downloads

Here you can download additional information about our eye protection systems
